Bharat Industries provides you range of Wire Die Inspection Microscopes, assisting you to maintain stringent quality control standard. Specially Designed BI-15 & BI-25 Microscopes help you to examine surface finish along with wear patterns of your dies, thereby playing a vital role in your quality control system.

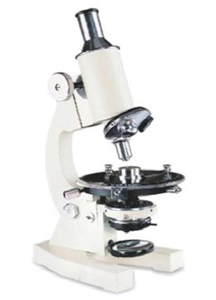

Bharat Industries makes available to you Monocular Microscope BI-15 for inspecting Draining Dies. This microscope is specifically used in studying the geometry of dies. The optics provided with the microscope enables excellent magnification, enabling great detailed inspection of Die-surface. It is excellent for viewing opaque surfaces as light after travelling through the objective, reflects again from surface of object back into the objective providing clearer view.

Technical Specifications:

Sr. No.	Specification	Details
1	Magnification	40X, 100X, 200X
2	EyePiece	Wide Field 10X eyepiece, 20X Optional
3	Three Objectives	4X, 10X, 20X
4	Microscope Head Details	15 Degrees inclined Monocular head
5	Illumination at base	Frosted Bulb 60W
6	Focusing	Focusing Knobs on both sides of microscope enabling raising and lowering of objective. This assures viewing of flat surfaced specimen placed below the objective. Total focusing distance: 20mm
7	Net Weight	5.5 Kg

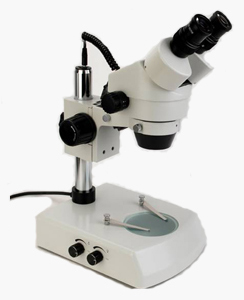

Bharat Industries also makes available to you Stereoscopic Binocular Microscope BI-25, specifically designed for viewing fine dies. It is very useful in viewing detailed images of Metallic Grain structures and is an ideal toolfor quality control and testing. It can be used in metallurgical laboratories as well as in foundries.

Technical Specifications:

Sr. No.	Specification	Details
1	Magnification	7X-45X
2	EyePiece	One Pair of Wide Field 10X eyepiece, 20X Optional
3	Twin Zooming Objectives	0.7x-4.5x (Zooming Ratio 1:6.5)
4	Microscope Head Details	45 Degrees inclined Monocular head Total Working Distance: 100mm
5	Illumination at base	Halogen Lamp incident light illuminator Fluorescent lamp illuminator
6	Focusing	Coaxial Fine and Coarse Focusing Knobs on both sides of microscope enabling raising and lowering of objective. Adjustable Lock to limit coarse adjustment to protect objectives and Spicemens.
7	Net Weight	14.5 Kg
